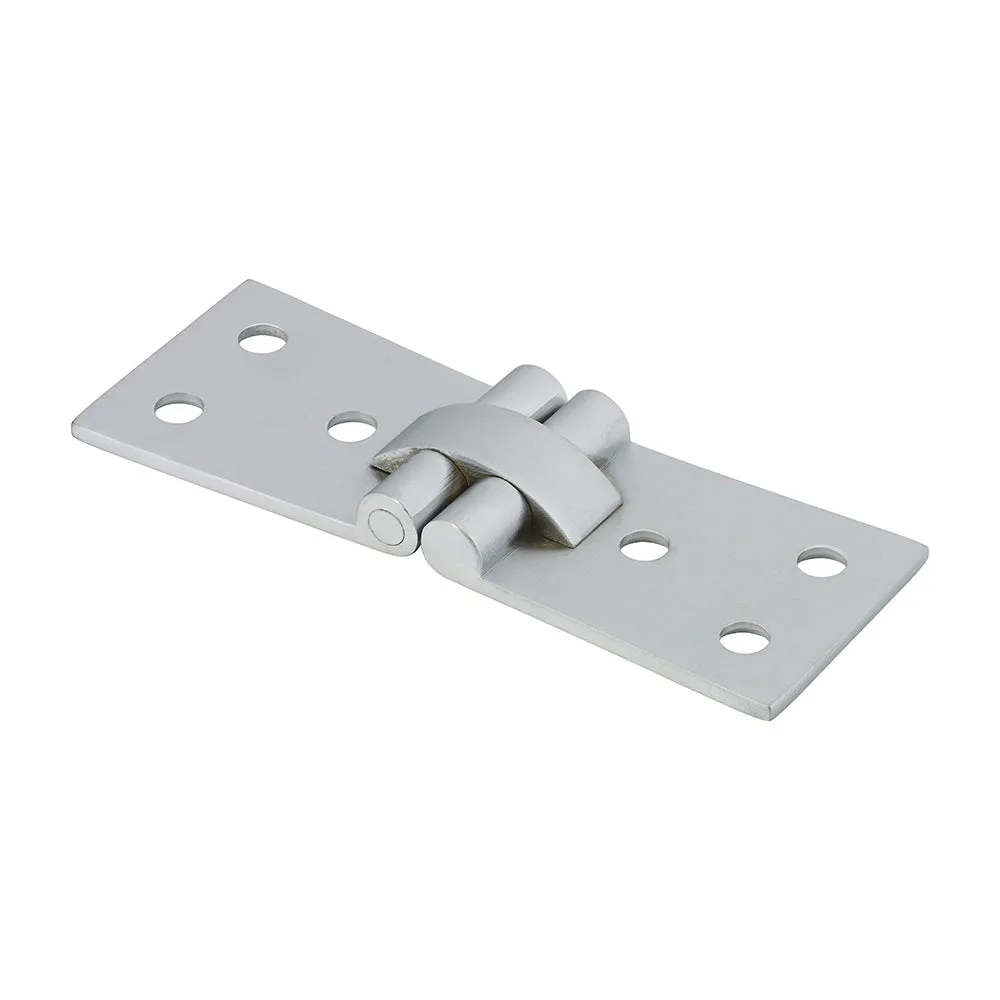

Counter flap hinges are manufactured from high quality extruded brass and brass pins to guarantee a rust free long lasting finish. They are suitable for all counter types and are a popular choice for public bar opening counter tops. Fixings included.
| Corner Type | Square |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Description | Counter flap hinges are manufactured from high quality extruded brass and brass pins to guarantee a rust free long lasting finish. They are suitable for all counter types and are a popular choice for public bar opening counter tops. Fixings included. |
| Finish | Satin Chrome |
| Hole Dia. mm | 5.9 |
| Knuckle Dia. mm | N/A |
| Knuckle Type | Plain |
| Length inch | 4 |
| Length mm | 100 |
| Material | Solid Brass |
| Max Door Weight kg | 10 |
| No. of CSK Screws | 12 |
| Open Width mm | 40 |
| Pin Material | Brass |
| Product Code | 234340 |
| Rec Screw Dia. mm | 4.0 |
| Rec Screw Gauge imp. | 8 |
| Screw Size imp. | 8 x 1 |
| Screw Size mm | 4.0 x 25 |
| Screws Required Per Pair | 12 |
| Size L x W mm | 100 x 40 |
| Thickness mm | 2.50 |
